| Nominal Diameter (inches) | Size (circ in.) | Approximate Weight (lbs/100ft) | Minimum Tensile Strength Spliced Rope (lbs) | Minimum Tensile Strength ISO Unspliced Rope (lbs) |
|---|---|---|---|---|
| 3/4 | 2-1/4 | 20.9 | 47,800 | 54,000 |
| 7/8 | 2-3/4 | 23.1 | 61,800 | 69,000 |
| 1 | 3 | 32.7 | 74,000 | 83,000 |
| 1-1/8 | 3-1/2 | 34.1 | 84,300 | 94,000 |
| 1-1/4 | 3-3/4 | 38.4 | 105,000 | 117,000 |
| 1-5/16 | 4 | 50.0 | 137,000 | 153,000 |
| 1-1/2 | 4-1/2 | 63.1 | 157,000 | 175,000 |
| 1-5/8 | 5 | 71.7 | 176,000 | 196,000 |
| 1-3/4 | 5-1/2 | 88.4 | 215,000 | 239,000 |
| 2 | 6 | 98.5 | 221,400 | 246,000 |
| 2-1/8 | 6-1/2 | 110.9 | 245,000 | 272,000 |
| 2-1/4 | 7 | 127.9 | 284,300 | 316,000 |
| 2-1/2 | 7-1/2 | 152.8 | 423,900 | 471,000 |
| 2-5/8 | 8 | 170.3 | 470,100 | 522,000 |
| 2-7/8 | 8-5/8 | 207.8 | 569,400 | 633,000 |
| 3 | 9 | 229.8 | 630,300 | 700,000 |

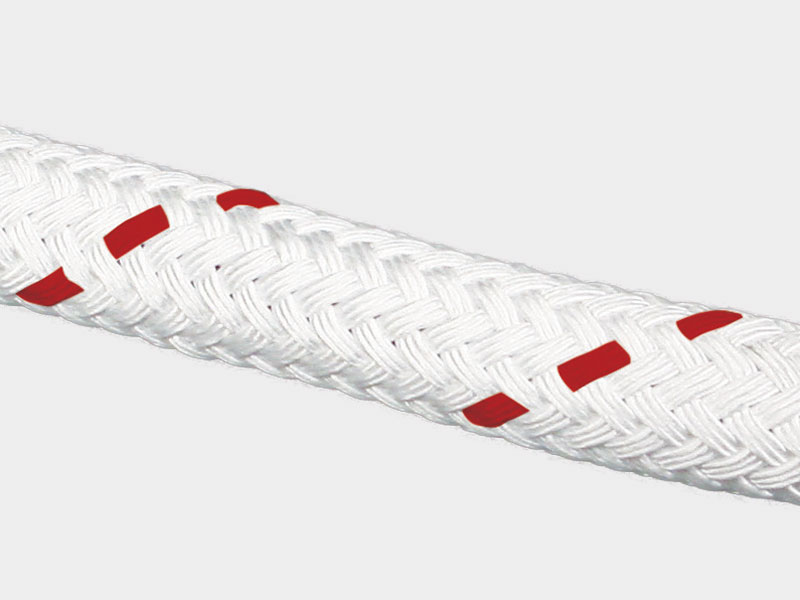

DZ-Tug Composite Double Braid
Toro® Core, Polyester Jacket, Double BraidDZ-Tug ropes provide high strength, low stretch and superior abrasion resistance in a round jacketed construction. The ropes are constructed with a braided HMPE core. This core is encased in a braided jacket of polyester fiber that offers excellent abrasion resistance and durability.
DZ-Tug ropes can be used in a multitude of applications where a high strength, and round torque free rope is desired. DZ-Tug can be used in towing applications, harbor assist main lines, crane extension pendants, and general marine working lines. These ropes are available with a polyurethane finish in clear or any of six colors and are designed to offer a versatile high strength jacketed rope.
Features / Benefits
- High strength
- Lowest stretch
- Low creep
- Firm hand
- Torque free
Applications
- Harbor assist main lines
- Towing lines
- Vessel mooring lines
Certifications
- ABS Type Approval
- DNV Type Approval
| Nominal Diameter (mm) | Size (circ in.) | Approximate Weight (kg/100m) | Minimum Tensile Strength Spliced Rope (tonnes) | Minimum Tensile Strength ISO Unspliced Rope (tonnes) |
|---|---|---|---|---|
| 18 | 2-1/4 | 31.0 | 21.7 | 24.5 |
| 22 | 2-3/4 | 34.4 | 28.0 | 31.3 |
| 24 | 3 | 48.7 | 33.6 | 37.6 |
| 28 | 3-1/2 | 50.8 | 38.2 | 42.6 |
| 30 | 3-3/4 | 57.1 | 47.6 | 53.1 |
| 32 | 4 | 74.5 | 62.1 | 69.4 |
| 36 | 4-1/2 | 93.9 | 71.2 | 79.4 |
| 40 | 5 | 106.7 | 79.8 | 88.9 |
| 44 | 5-1/2 | 131.6 | 97.5 | 108 |
| 48 | 6 | 146.6 | 100 | 112 |
| 52 | 6-1/2 | 165.1 | 111 | 123 |
| 56 | 7 | 190.3 | 129 | 143 |
| 60 | 7-1/2 | 227.4 | 192 | 214 |
| 64 | 8 | 253.4 | 213 | 237 |
| 70 | 8-5/8 | 309.1 | 258 | 287 |
| 72 | 9 | 342.0 | 286 | 317 |
