Tufflex^® Sinking

Polyester & Copolymer Blend, 3- & 8-Strand

Tufflex® Sinking Ropes are crafted from a unique blend of high-strength polyester and copolymer fibers, offering a balanced combination of durability, flexibility, and performance. This specialized construction ensures excellent wear resistance, making the rope ideal for demanding marine and industrial applications where long service life is essential. Its sinking property adds functional value in environments where buoyant ropes are unsuitable, such as underwater applications: subsea, fishing and offshore applications.

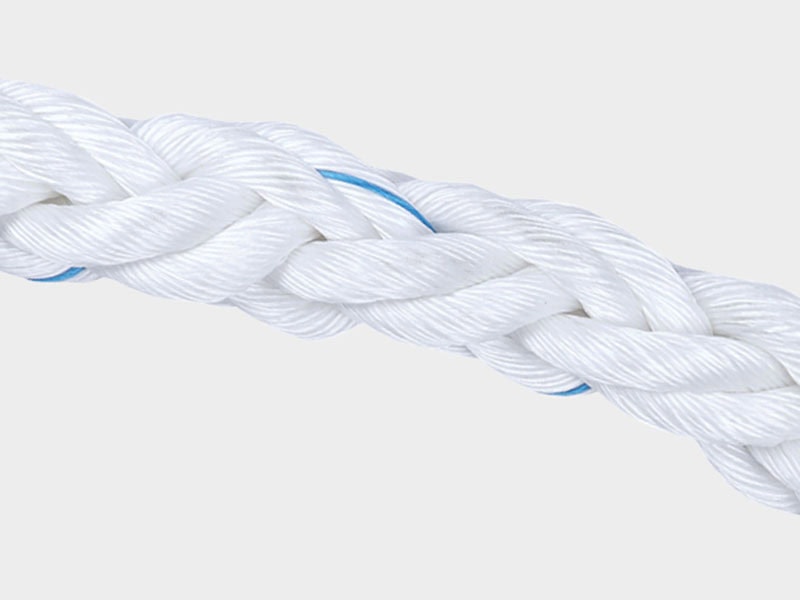

Close-up of white synthetic rope with blue accents for marine use.

Tufflex® Sinking Tech Sheet

Features / Benefits

Sinking nature
Excellent abrasion resistance
Easy splicing

Applications

Aquaculture
Fishing industry
Offshore and subsea operations
Subsea rigging or anchoring
Harbor and port use
Dredging and marine construction
Industrial marine applications
Utility and general marine use

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
3-Strand
	15/16	3.09	2282	2535
	1-1/8	4.10	3373	3748
	1-1/2	6.11	4960	5512
	1-3/4	9.21	6746	7496
	2	11.29	8532	9480
	2-1/4	14.31	10714	11905
	2-1/2	17.40	13294	14771
	2-3/4	22.04	15873	17637
	3	25.53	18850	20944
	3-1/2	34.81	25794	28660
	4	46.10	32739	36376
	4-1/2	54.98	43651	48502
	5	67.81	63493	70548
	5-1/2	71.78	79366	88185
	6	86.13	93255	103617
	6-1/2	100.18	109922	122136
	7	115.46	127978	142198
	8	178.07	186511	207234
	9	225.11	225202	250224
	10	276.73	277782	308647
8-Strand
	3	25.53	18850	20944
	3-1/2	34.82	25794	28660
	4	46.12	32739	36376
	4-1/2	54.98	43651	48502
	5	67.81	63493	70548
	5-1/2	71.78	79366	88185
	6	86.13	93255	103617
	6-1/2	100.18	109922	122136
	7	115.46	127978	142198
	8	178.07	186511	207234
	9	225.11	225202	250224
	10	276.73	277782	308647
	11	335.99	294251	326945
	12	399.82	350204	389115
	13	467.02	410721	456356
	14	540.94	476198	529109
	15	618.21	546636	607373

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (kgs/100ft)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
3-Strand
	15/16	4.60	1.04	1.2
	1-1/8	6.10	1.53	1.7
	1-1/2	9.10	2.25	2.5
	1-3/4	13.70	3.06	3.4
	2	16.80	3.87	4.3
	2-1/4	21.30	4.86	5.4
	2-1/2	25.89	6.03	6.7
	2-3/4	32.80	7.20	8.0
	3	38.00	8.55	9.5
	3-1/2	51.80	11.70	13.0
	4	68.60	14.85	16.5
	4-1/2	81.82	19.80	22.0
	5	100.91	28.80	32.0
	5-1/2	106.82	36.00	40.0
	6	128.18	42.30	47.0
	6-1/2	149.09	49.86	55.4
	7	171.82	58.05	64.5
	8	265.00	84.60	94.0
	9	335.00	102.15	113.5
	10	411.82	126.00	140.0
8-Strand
	3	38.00	8.55	9.5
	3-1/2	51.82	11.70	13.0
	4	68.64	14.85	16.5
	4-1/2	81.82	19.80	22.0
	5	100.91	28.80	32.0
	5-1/2	106.82	36.00	40.0
	6	128.18	42.30	47.0
	6-1/2	149.09	49.86	55.4
	7	171.82	58.05	64.5
	8	265.00	84.60	94.0
	9	335.00	102.15	113.5
	10	411.82	126.00	140.0
	11	500.00	133.47	148.3
	12	595.00	158.85	176.5
	13	695.00	186.30	207.0
	14	805.00	216.00	240.0
	15	920.00	247.95	275.5
