| Nominal Diameter (inches) | Size (circ in.) | Approximate Weight (lbs/100ft) | Minimum Tensile Strength Spliced Rope (lbs) | Minimum Tensile Strength ISO Unspliced Rope (lbs) |
|---|---|---|---|---|
| 3/4 | 2-1/4 | 16.3 | 53,000 | 58,900 |
| 7/8 | 2-3/4 | 20.4 | 70,900 | 78,600 |
| 1 | 3 | 24.5 | 75,600 | 83,900 |
| 1-1/8 | 3-1/2 | 33.1 | 95,000 | 105,500 |
| 1-1/4 | 3-3/4 | 36.0 | 113,000 | 125,600 |
| 1-5/16 | 4 | 49.1 | 157,900 | 175,400 |
| 1-1/2 | 4-1/2 | 55.7 | 183,400 | 203,800 |
| 1-5/8 | 5 | 64.2 | 201,000 | 223,200 |
| 1-3/4 | 5-1/2 | 79.5 | 228,800 | 253,900 |
| 2 | 6 | 88.9 | 242,400 | 269,300 |

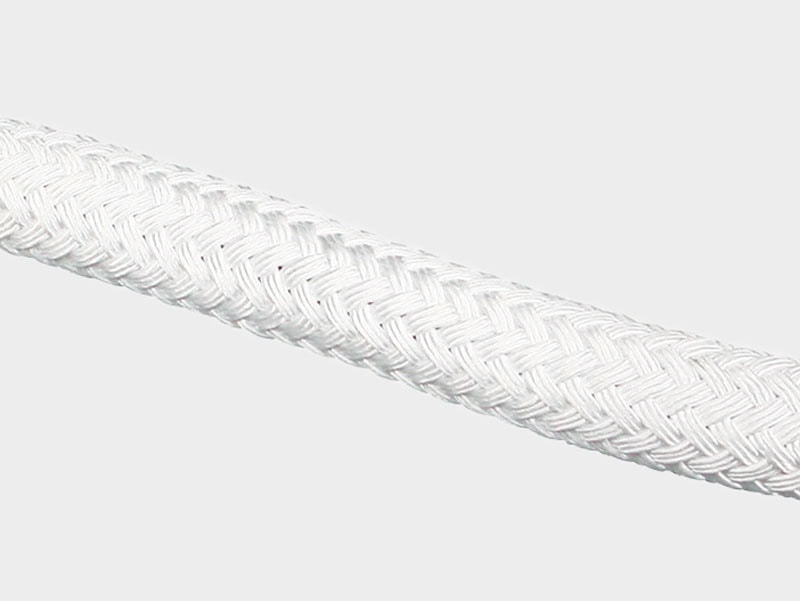

G/T Composite Double Braid
Plasma® Core, Polyester Jacket, Double BraidG/T Composite ropes provide high strength, low stretch and superior abrasion resistance in a firm round jacketed construction. The ropes are constructed with a braided Plasma® core. This core is encased in a tightly braided jacket of a new generation HMPE fiber that offers the highest abrasion resistance and durability.* G/T Composite ropes can be used in mooring applications where a very high strength, firm and round torque free rope is desired.
G/T Composite can also be used in commercial fishing as wire rope replacement and helicopter longlines. These ropes are available with a polyurethane finish in clear or any of six colors, and are designed to withstand drum compression on mooring winches.
* GT Composite ropes can also be designed with materials other than HMPE for jacketing depending on application. Linear density & external fiber properties will change depending on jacketing material but the strength will remain the same on a per size basis. Please contact Cortland for further information.
Features / Benefits
- Highest strength
- Lowest stretch
- Low creep
- Firm hand
- Torque free
Applications
- Commercial fishing lines
- Helicopter longlines
- Vessel mooring lines
| Nominal Diameter (mm) | Size (circ in.) | Approximate Weight (kg/100m) | Minimum Tensile Strength Spliced Rope (tonnes) | Minimum Tensile Strength ISO Unspliced Rope (tonnes) |
|---|---|---|---|---|
| 18 | 2-1/4 | 24.3 | 24 | 26.7 |
| 22 | 2-3/4 | 30.4 | 32.2 | 35.7 |
| 24 | 3 | 36.5 | 34.3 | 38.1 |
| 28 | 3-1/2 | 49.3 | 43.1 | 47.9 |
| 30 | 3-3/4 | 53.6 | 51.3 | 57.0 |
| 32 | 4 | 73.1 | 71.6 | 79.6 |
| 36 | 4-1/2 | 82.9 | 83.2 | 92.5 |
| 40 | 5 | 95.5 | 91.2 | 101.3 |
| 44 | 5-1/2 | 118.3 | 103.8 | 115.2 |
| 48 | 6 | 132.3 | 110.0 | 122.2 |
