| Nominal Diameter (inches) | Size (circ in.) | Approximate Weight (lbs/100ft) | Minimum Tensile Strength Spliced Rope (lbs) | Minimum Tensile Strength ISO Unspliced Rope (lbs) |
|---|---|---|---|---|
ABS Type Approval and DNV Type Approval approved sizes — up to 4” diameter (96 mm) |
||||
| 1-5/8 | 5 | 66 | 291,000 | 323,300 |
| 1-3/4 | 5-1/2 | 78 | 314,000 | 348,900 |
| 2 | 6 | 91 | 355,000 | 392,450 |
| 2-1/8 | 6-1/2 | 109 | 428,000 | 475,600 |
| 2-1/4 | 7 | 122 | 481,000 | 534,400 |
| 2-1/2 | 7-1/2 | 148 | 530,000 | 588,900 |
| 2-5/8 | 8 | 167 | 596,000 | 662,200 |
| 2-3/4 | 8-1/2 | 187 | 660,000 | 733,300 |
| 3 | 9 | 214 | 780,000 | 866,700 |
| 3-1/8 | 9-1/2 | 235 | 850,000 | 944,400 |
| 3-1/4 | 10 | 261 | 940,000 | 1,045,400 |
| 3-1/2 | 10-1/2 | 298 | 1,108,000 | 1,231,000 |
| 3-5/8 | 11 | 324 | 1,250,000 | 1,388,900 |
| 3-3/4 | 11-1/2 | 343 | 1,317,000 | 1,463,000 |
| 4 | 12 | 394 | 1,520,000 | 1,689,000 |
| 4-1/8 | 12-1/2 | 457 | 1,622,000 | 1,802,000 |
| 4-1/4 | 13 | 514 | 1,697,000 | 1,886,000 |
| 4-1/2 | 13-1/2 | 530 | 1,827,000 | 2,030,000 |
| 4-5/8 | 14 | 546 | 1,880,000 | 2,089,000 |
| 4-3/4 | 14-1/2 | 587 | 1,927,000 | 2,141,000 |
| 5 | 15 | 606 | 2,069,500 | 2,299,000 |
| 5-1/8 | 15-1/2 | 657 | 2,212,000 | 2,458,000 |
| 5-1/4 | 16 | 703 | 2,355,000 | 2,617,000 |
| 5-1/2 | 16-1/2 | 749 | 2,497,500 | 2,775,000 |
| 5-5/8 | 17 | 813 | 2,640,000 | 2,933,000 |
| 5-3/4 | 17-1/2 | 871 | 2,782,500 | 3,092,000 |
| 6 | 18 | 932 | 2,925,000 | 3,250,000 |
| 6-1/8 | 18-1/2 | 985 | 3,068,000 | 3,409,000 |
| 6-1/4 | 19 | 1038 | 3,210,500 | 3,567,000 |
| 6-1/2 | 19-1/2 | 1103 | 3,353,000 | 3,726,000 |
| 6-5/8 | 20 | 1159 | 3,496,000 | 3,884,000 |
| 6-3/4 | 20-1/2 | 1227 | 3,638,500 | 4,043,000 |
| 7 | 21 | 1284 | 3,781,000 | 4,201,000 |
| 7-1/8 | 21-1/2 | 1334 | 3,963,500 | 4,404,000 |
| 7-1/4 | 22 | 1392 | 4,066,000 | 4,518,000 |
| 7-1/2 | 22-1/2 | 1452 | 4,209,000 | 4,677,000 |
| 7-5/8 | 23 | 1527 | 4,351,500 | 4,835,000 |
| 7-3/4 | 23-1/2 | 1589 | 4,494,000 | 4,993,000 |
| 8 | 24 | 1653 | 4,637,000 | 5,152,000 |
| 8-1/8 | 24-1/2 | 1732 | 4,779,000 | 5,310,000 |
| 8-1/4 | 25 | 1798 | 4,922,000 | 5,469,000 |
Plasma® 12×12

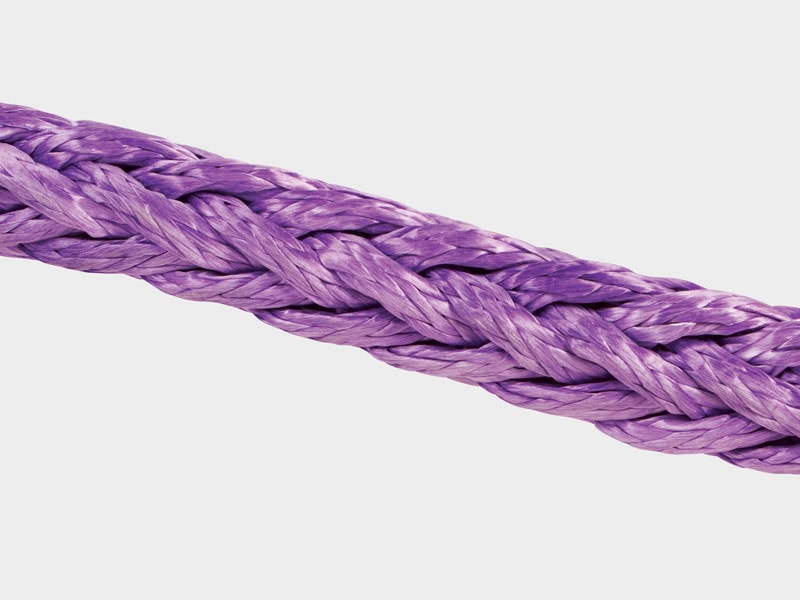

Dyneema® SK75, 12×12Plasma® 12×12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand. This construction addresses the most critical properties of the fibers to provide a very high strength translation efficiency for larger ropes. The design also provides superior snag resistance compared to other 12×12 designs which is important when dragging the rope. Plasma 12×12 is supplied with our standard polyurethane finish, although other coatings can be applied to suit specific applications.
Cortland’s Plasma® 12×12 ropes are the culmination of 25+ years of engineering expertise in the HMPE industry. Our dedication to providing customers with industry-leading synthetic line is and always has been the goal. Our continued innovation and unwavering desire are to provide the strongest and most reliable product available.
Features / Benefits
- World’s strongest rope for its weight
- Long lengths available
- High flex fatigue and abrasion resistance
- Easy to splice, inspect, and repair
- Neutrally buoyant in water
- Select sizes are ABS & DNV Type approved
Applications
- Replacement for wire rope heavy lift slings
- Tug vessel assist lines
- Vessel mooring lines
- Offshore working ropes
- Lashings
Certifications
- ABS Type Approval
- DNV Type Approval
- MEG4 Approved
| Nominal Diameter (mm) | Size (circ in.) | Approximate Weight (kg/100m) | Minimum Tensile Strength Spliced Rope (tonnes) | Minimum Tensile Strength ISO Unspliced Rope (tonnes) |
|---|---|---|---|---|
ABS Type Approval and DNV Type Approval approved sizes — up to 4” diameter (96 mm) |
||||
| 40 | 5 | 98 | 132 | 147 |
| 44 | 5-1/2 | 117 | 142 | 158 |
| 48 | 6 | 136 | 161 | 178 |
| 52 | 6-1/2 | 162 | 194 | 216 |
| 56 | 7 | 182 | 218 | 242 |
| 60 | 7-1/2 | 220 | 240 | 267 |
| 64 | 8 | 249 | 270 | 300 |
| 68 | 8-1/2 | 278 | 299 | 333 |
| 72 | 9 | 319 | 354 | 393 |
| 76 | 9-1/2 | 350 | 386 | 428 |
| 80 | 10 | 388 | 426 | 474 |
| 84 | 10-1/2 | 443 | 503 | 559 |
| 88 | 11 | 482 | 567 | 630 |
| 92 | 11-1/2 | 510 | 598 | 664 |
| 96 | 12 | 586 | 690 | 766 |
| 100 | 12-1/2 | 679 | 736 | 818 |
| 104 | 13 | 765 | 770 | 856 |
| 108 | 13-1/2 | 789 | 829 | 921 |
| 112 | 14 | 812 | 853 | 948 |
| 116 | 14-1/2 | 873 | 874 | 971 |
| 120 | 15 | 902 | 939 | 1043 |
| 124 | 15-1/2 | 978 | 1004 | 1115 |
| 128 | 16 | 1046 | 1069 | 1187 |
| 132 | 16-1/2 | 1114 | 1133 | 1259 |
| 136 | 17 | 1210 | 1198 | 1331 |
| 140 | 17-1/2 | 1296 | 1262 | 1403 |
| 144 | 18 | 1386 | 1327 | 1475 |
| 148 | 18-1/2 | 1465 | 1392 | 1547 |
| 152 | 19 | 1545 | 1457 | 1618 |
| 156 | 19-1/2 | 1642 | 1521 | 1691 |
| 160 | 20 | 1725 | 1586 | 1762 |
| 164 | 20-1/2 | 1827 | 1651 | 1834 |
| 168 | 21 | 1911 | 1716 | 1906 |
| 172 | 21-1/2 | 1986 | 1798 | 1998 |
| 176 | 22 | 2072 | 1845 | 2050 |
| 180 | 22-1/2 | 2161 | 1910 | 2122 |
| 184 | 23 | 2272 | 1974 | 2194 |
| 188 | 23-1/2 | 2365 | 2039 | 2265 |
| 192 | 24 | 2459 | 2104 | 2338 |
| 196 | 24-1/2 | 2578 | 2168 | 2409 |
| 200 | 25 | 2677 | 2233 | 2481 |
